Telephone Pole

Command: Telephone Pole
Menu path: Routing > Telephone Pole
Icon: prolazni_stub16.png  prolazni_stub32.png
Functional description: Adds a telephone pole.



Routing > Telephone Pole command adds new telephone pole to the site plan drawing.

Placement of a telephone pole is a procedure by which the spatial position of the pole symbol is defined.
There are no preconditions for telephone pole placement.
In other words, pole symbol can also be placed into a completely empty drawing.


Adding a telephone pole

From the main menu Routing > Telephone Pole command is run.

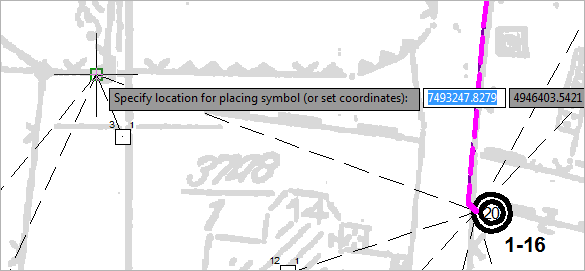

The command is now active. The cursor is displayed in a form of plus sign ("+") with a message next to it instructing us to show the location where we want to place the pole symbol.
Select the location by clicking on the route-point (Figure 1).


Figure 1

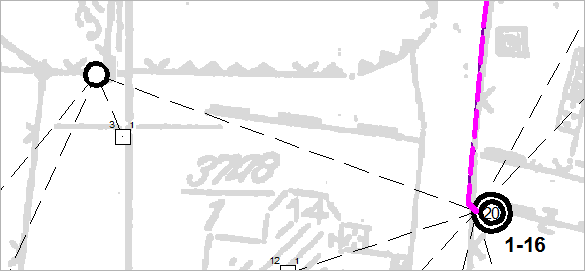

After clicking, the telephone pole symbol is generated on the selected route-point (Figure 2).


Figure 2

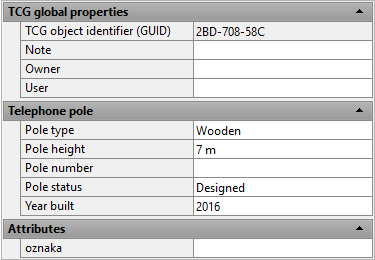

Properties


TCG Global properties:

  • TCG Object identifier - identifier
  • Note - Aebitraey note regarding the selected pole is entered into this box
  • Owner - Infrastructure owner
  • User - Infrastructure user

Telephone pole:

  • Pole type - (user selects the type from the drop-down menu - default “Concrete”)
  • Pole height - (user manually selects height from the drop-down menu)
  • Pole number - (user enters it manually)
  • Pole status - Designed
  • Year built - (user manually enters it - default is current year)

Attributes

  • Label - (generated based on the previous items)


Figure 3
Warning:

Even though Attributes > Label box is enabled, new value entry will not bring about actual change to the object property.
The values of this box are automatically generated and the user should not change them.
