Predefined crossing ducts

Command: Crossing Duct PVC 1x1
Crossing Duct PVC 1x2
Crossing Duct PE 1x1
Crossing Duct PE 1x2
Crossing Duct Oki 1x1
Crossing Duct Oki 1x2
Crossing Duct FeZn 1x1
Crossing Duct FeZn 1x2
Menu path: Duct bank > Crossing Ducts > (one of the aforementioned commands)
Icons: prelaz16-1.png  prelaz32-1.png | prelaz16-2.png  prelaz32-2.png | prelaz16-7.png  prelaz32-7.png | prelaz16-8.png  prelaz32-8.png | prelaz16-9.png  prelaz32-9.png | prelaz16-10.png  prelaz32-10.png | prelaz16-5.png  prelaz32-3.png | prelaz16-6.png  prelaz32-4.png
Functional description: The command lays down a crossing duct with the property "existing" and predefined number of ducts, along user defined path.



Predefined Crossing Ducts command enables crossing duct laying with pre-defined properties.
By laying in this way, you’ll get the crossing duct with the following properties:


Properties


Crossing Duct:

  • Duct type - (PVC, PE, Oki, FeZn - depending on the run command)
  • Number of ducts - (1x1 or 1x2 - depending on the used command)
  • Duct diameter - (Ø110)
  • Construction method  - (Digging)
  • Pathway type - (<None>)
  • Duct bank status - Designed
  • Included in BOQ - (Yes)
  • Year built - (current year is offered)

Crossing Duct Length

  • Duct length - length obtained from the drawing
  • Fixed length - 0.0 (i.e. not entered)

TCG Global properties:

  • TCG Object identifier - (identification number)
  • Note - (write a note that refers to the selected crossing duct)
  • Owner - Infrastructure owner
  • User - (infrastructure user)

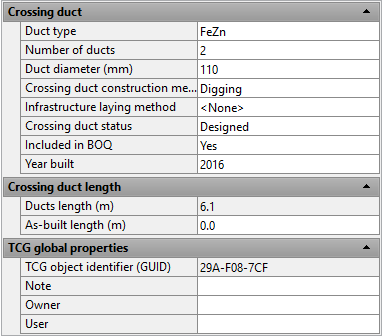

Figure 1

These properties can be changed in Properties window (Figure 1).


Laying procedure

The procedure of crossing duct laying is the same for all three cases (designed, existing and pre-defined).
The only difference is in the properties assigned to the crossing ducts after drawing.
The very laying procedure is described on Crossing Duct Laying page.
