ONT (Optical Network Terminal)

Command: ONT (Optical Network Terminal)
Menu path: Fiber Optics > ONT
Icon:
Functional description:



 ONT command enables laying of ONT with previously set properties.
ONT is shown on the site plan by means of a symbol as in Figure 1.


Figure 1

This method results in ONT with the following properties:


ONT properties


ONT properties:

  • Manufacturer - name of manufacturer  (entered by the user)
  • Label - ONT label (entered by the user)
  • Capacity - ODF capacity (default value is 1)
  • Connector Type -  (default connector type, defined in system settings)
  • Object Name - name of the object which contains ONT (entered by the user)
  • Object Address - address of the object which contains ONT (entered by the user)
  • Status - it can be Designed or As-built  (selected by the user)
  • Year of installation - year of ONT installation (current year is offered)

TCG Global properties

  • TCG Object identifier - identifier
  • Note - the user enters notes related to the selected ONT
  • Owner - Infrastructure owner
  • User - Infrastructure user

Attributes

  • Label - ONT label generated based on the previous items

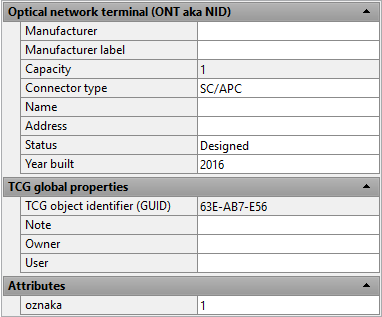

Figure 2

In Properties window set the ONT properties (Figure 2).

Warning:

Even though “Attributes > Label” field is enabled, new value entry will not bring about actual attribute change.
The values of this field are automatically generated and the user should not change them.


ONT laying

The laying procedure is the same as for ODFs.
The difference lies in the object which is to be laid by the run command (ODF, OTB, Patch panel, Device, Router, IPAN or ONT).
The very laying procedure is described on ODF Laying page.


Splicing

The procedure of ONT splicing is described on Fiber splicing in terminals page.
