Window: Construction of Building


Construction of Building window is used to:

  1. define the number of floors of the building being constructed,
  2. define the NID type that will be generated simultaneously with the building (optional) and
  3. enter data about NID (if it is generated simultaneously with the building).

Construction of Building window opens, during the process of drawing (or converting to) the building.
Start the process of drawing by running one of the commands:

and the conversion by command:

On that occasion, the building and the NID are generated within the building (optional).


Window: Construction of Building

Construction of Building window (Figures 1 and 2) is used to enter data to:

  • the building being drawn
  • NID that is generated simultaneously with the building (if the option is selected)
Note:

Generating NID and data entry to NID through the window Construction of Building is enabled in order to accelerate the working process.
Such NID is exactly the same as when it is subsequently added to the building symbol.

Moreover, in this way it is possible to set only one NID on the building, so other NIDs, if any, should be added subsequently.

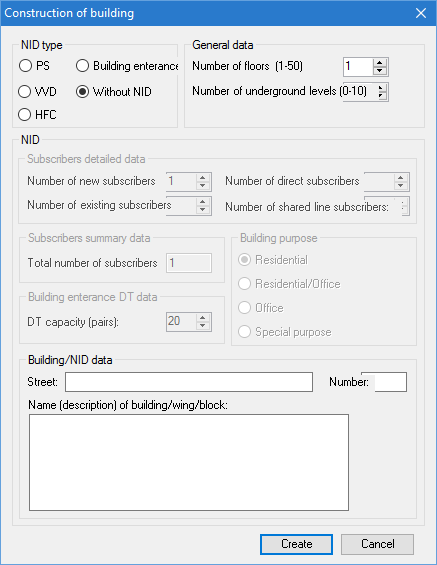

Figure 1 - (No NID)

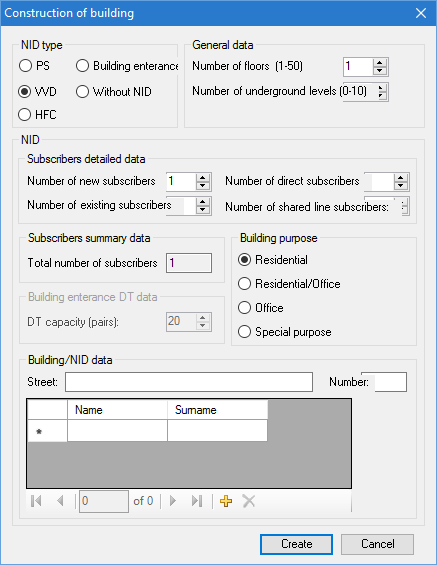

Figure 2 - (With NID (WD). Fields related to the NID are enabled)

Data you enter in the window, referring  to the building structure itself, are:

  • Number of floors
  • Street and number
  • Building/wing /block name (description)

In addition, if you also select some NID type, the data on "Street" and "Number", referring to the building structure will be displayed on the NID symbol.


NID Type

A set of radio buttons “NID Type" is used to seelect the type of NID
that will be generated with the symbol of the building.
You can select one of the following items:

  • NID (buried line) - (NID (buried line) will be generated with the building)
  • Building Entrance DT - (Building Entrance DT will be generated with the building)
  • NID (aerial line) - (NID (aerial line) will be generated with the building)
  • No NID - (no NID will be generated)


General Data

In the “General Data"  section, enter data regarding the number of floors:

  • Number of floors (1-50) - (the user enters the number of floors (maximum 50))
  • Number of underground levels (1-10) - (the user enters the number of underground levels (maximum 10))


NID (Network interface device)

All data in “NID” section are entered only on the NID object, except these:

  1. Street and number (which are the same for NID and building structure) and
  2. Building name (only buildings)

Data can be entered only if a NID is generated together with the building.
The data you enter vary slightly depending on the type of NID being generated.


Detailed data about the users:
  • Number of new subscribers
  • Number of existing subscribers
  • Number of direct subscribers
  • Number of shared line subscribers

Summary data about the users
  • Total number of users - (info box that displays the information calculated on the basis of previous items)

Data about Building Entrance DT
  • Capacity of DT (pair) - (active only if the selected type of NID is "Building Entrance DT")

Building Purpose:

(These data are NOT entered to the building structure, but only to the NID.)

  • Residential
  • Residential - Office Space
  • Office Space
  • Special Purpose

Building / NID Data:
  • Street - (Name of street in which the NID is located)
  • Number - (Number of building in which the NID is located)
  • List of subscribers’ names and last names - (the field is active only when NID (buried line), NID (aerial line) or HFC user is generated)
  • Building Name - (entered only to the building)
